| Producent |
MSI |
| Wyposażenie dodatkowe |
2x SATA Cable, EZ M.2 Clip Packages, USB Drive, Cable Sticker, Wi-Fi Antenna, Quick Installation Guide, European Union Regulatory Notice |
| Maksymalna wielkość pamięci |
192 GB |
| Chipset płyty głównej |
Intel® Z790 |
| Wymiary [S x W] (mm) |
304,8 x 243,84 |
| Opakowanie |
BOX |
| Gniazdo procesora |
Socket 1700 |
| Standard pamięci |
DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC) |
| Format płyty |
ATX |
| Wbudowana karta graficzna |
Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora) |
| Obsługiwane typy procesorów |
Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Pentium™ (Socket 1700), Intel Celeron™ (Socket 1700) |
| Tryb pracy pamięci RAM |
Dual Channel |
| Gniazda karty graficznej |
HDMI, DisplayPort |
| Uwagi do karty graficznej |
Support HDMI™ 2.1, maximum resolution of 4K 60Hz, Support DP 1.4, maximum resolution of 8K 60Hz, Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed |
| Zintegrowana karta dźwiękowa |
Realtek® ALC4080 8-Channel High Definition Audio CODEC |
| Gniazda karty dźwiękowej |
5x Audio Jack, Wyjście optyczne S/PDIF , Wewnętrzne gniazdo audio przedniego panelu |
| Złącza PCI Express x16 |
2 |
| Uwagi do złącz PCI |
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Port Bluetooth |
Bluetooth V5.3 |
| Port równoległy (LPT) |
Brak |
| Inne porty i gniazda |
CPU Fan, Pump Fan, 6x System Fan, 2x Front Panel, Złącze czujnika otwarcia obudowy, TBT connector, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, 2x Antenna Ports, Przycisk Clear CMOS na panelu tylnym, Przycisk Flash BIOS na panelu tylnym |
| Gniazdo zasilania |
ATX (24-pin) + 2x ATX12V (8-pin) |
| Uwagi do pamięci RAM |
Max. overclocking frequency:, - 1DPC 1R Max speed up to 7200+ MHz, - 1DPC 2R Max speed up to 6600+ MHz, - 2DPC 1R Max speed up to 6400+ MHz, - 2DPC 2R Max speed up to 5600+ MH, Supports Intel® XMP3.0 OC, Supports non-ECC, un-buffered memory |
| Złącza PCI Express x1 |
1 |
| Uwagi do karty dźwiękowej |
Supports up to 32-Bit/384 kHz playback on front panel |
| Okres rękojmi w miesiącach |
36 |
| Zintegrowany kontroler SATA |
Chipset+CPU: 7x SATA III 6Gb/s + RAID 0,1,5,10 + 4x M.2 + RAID 0,1,5,10 |
| Uwagi do kontrolera SATA |
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices, SATA_A1~A2 do not support RAID function |
| Port Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax |
| Port LAN |
1x 2,5 Gigabit LAN Intel® |
| Port PS/2 |
Brak |
| Port szeregowy (COM) |
Brak |
| Maksymalna ilość portów USB 2.0 |
4 |
| Maksymalna ilość portów USB 3.x |
13 |
| Porty USB na panelu tylnym |
4x USB 3.0 + 4x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C |
| Gniazda USB na płycie głównej |
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port) |
| Cechy |

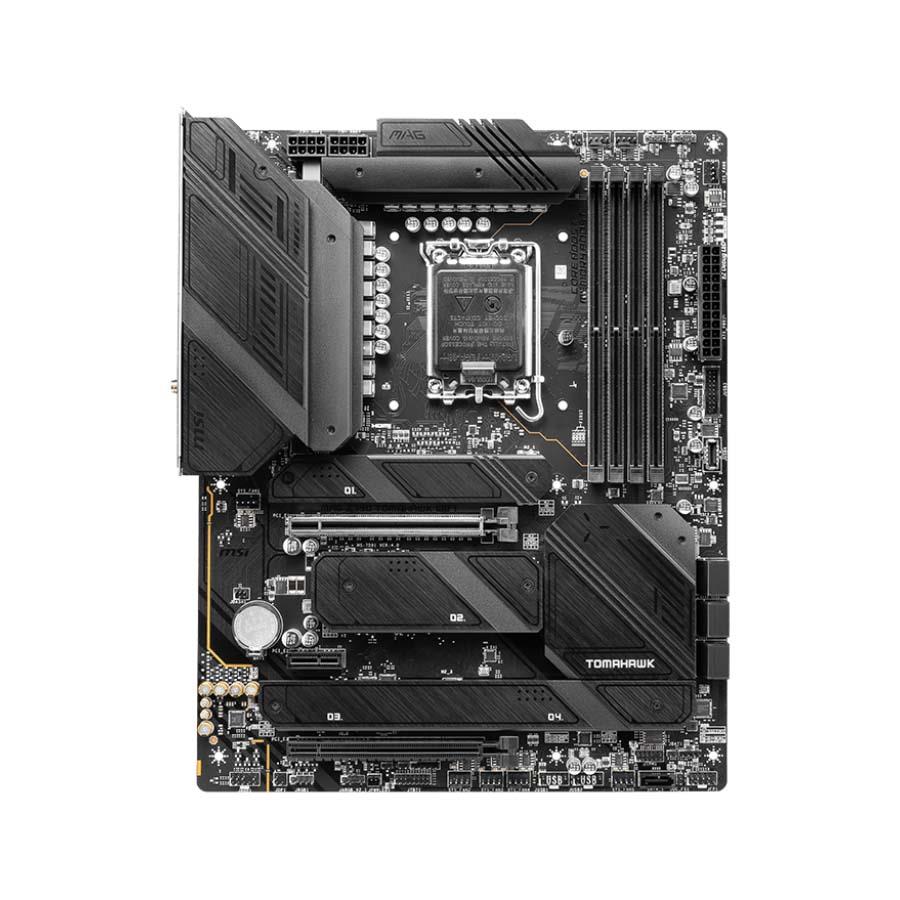

MAG Z790 TOMAHAWK WIFI;ATX |
| Baza SCIP |
Nie |
| Ilość złącz pamięci DDR5 |
4 |
| Uwagi do WiFi / BT |
Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports Bluetooth® 5.3, FIPS, FISMA, Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready , in Windows 11, Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11 |
