| Producent |
GIGABYTE |
| Maksymalna wielkość pamięci |
192 GB |
| Chipset płyty głównej |
Intel® Z790 |
| Wymiary [S x W] (mm) |
305 x 244 |
| Opakowanie |
BOX |
| Gniazdo procesora |
Socket 1700 |
| Standard pamięci |
DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC) |
| Format płyty |
ATX |
| Wbudowana karta graficzna |
Intel® HD Graphics |
| Obsługiwane typy procesorów |
Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Core i3 14th Generation, Intel Core i5 14th Generation, Intel Core i7 14th Generation, Intel Core i9 14th Generation, Intel Celeron™ (Socket 1700), Intel Pentium™ (Socket 1700) |
| Uwagi do procesora |
Please refer to "CPU Support List" for more information |
| BIOS |
1 x 256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5 |
| Tryb pracy pamięci RAM |
Dual Channel |
| Gniazda karty graficznej |
HDMI, DisplayPort |
| Uwagi do karty graficznej |
1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, - Support for HDMI 2.1 version and HDCP 2.3, - Support for native HDMI 2.1 TMDS compatible ports, 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, - Support for DisplayPort 1.2 version and HDCP 2.3, Graphics specifications may vary depending on CPU support |
| Zintegrowana karta dźwiękowa |
Realtek ® 7.1 Surround Sound High Definition Audio CODEC |
| Gniazda karty dźwiękowej |
Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF , 3x Audio Jack |
| Złącza PCI Express x16 |
3 |
| Uwagi do złącz PCI |
CPU:, - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4, - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 , (PCIEX1_2, PCIEX1_3) |
| Port Bluetooth |
Bluetooth V5.3 |
| Port równoległy (LPT) |
Brak |
| Inne porty i gniazda |
CPU fan header, CPU fan/water cooling pump header, 3x system fan headers, System fan/water cooling pump header, 2x Addressable LED strip headers, 2x Thunderbolt™ add-in card connectors, Front panel header, Gniazdo modułu TPM, Przycisk Reset, Q-Flash Plus button, Clear CMOS jumper |
| Gniazdo zasilania |
ATX (24-pin) + 2x ATX12V (8-pin) |
| Uwagi do pamięci RAM |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules |
| Złącza PCI Express x1 |
2 |
| Okres rękojmi w miesiącach |
36 |
| Zintegrowany kontroler SATA |
Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2 |
| Uwagi do kontrolera SATA |
CPU:, - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD , support) (M2A_CPU), Chipset:, - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD , support) (M2P_SB), - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2, SSD support) (M2M_SB), - 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Port Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax |
| Port LAN |
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®) |
| Port PS/2 |
Port combo klawiatury/myszy PS/2 |
| Port szeregowy (COM) |
Brak |
| Maksymalna ilość portów USB 2.0 |
6 |
| Maksymalna ilość portów USB 3.x |
9 |
| Porty USB na panelu tylnym |
2x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C |
| Gniazda USB na płycie głównej |
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port) |
| Cechy |

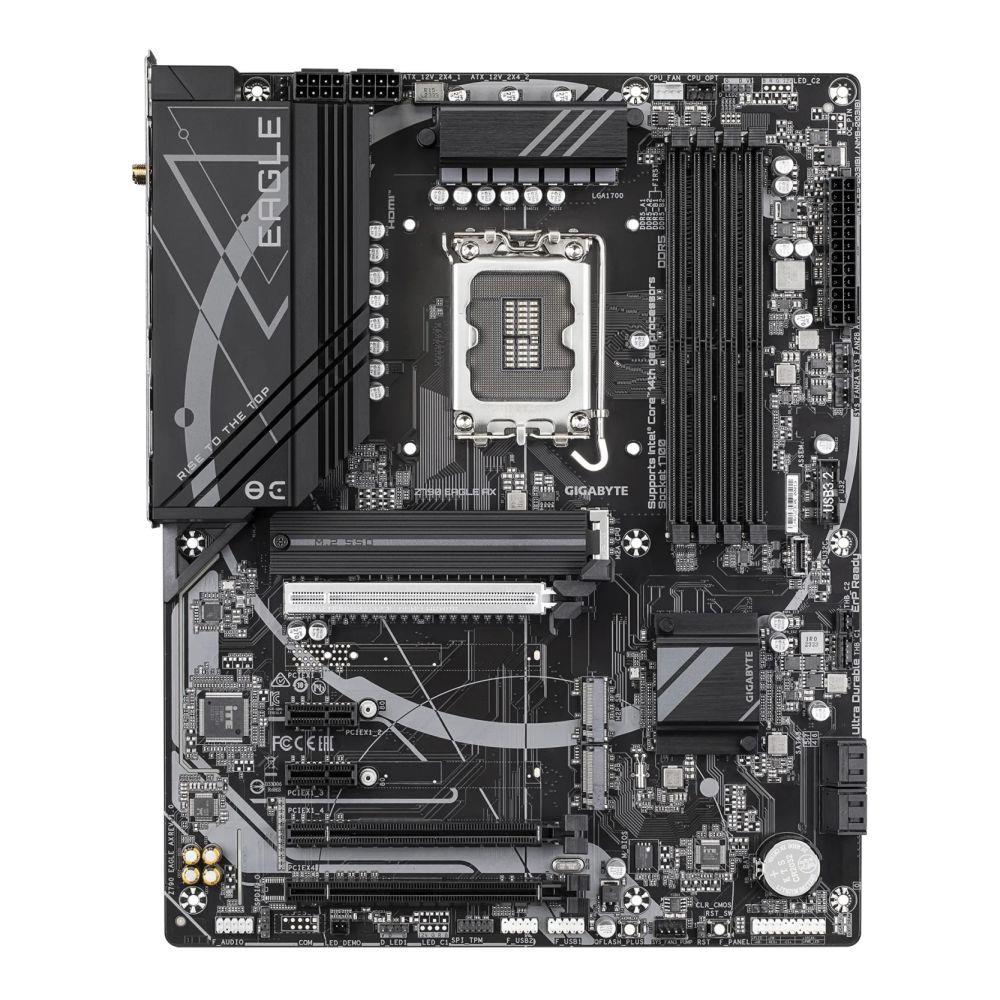

Z790 EAGLE AX;ATX |
| Baza SCIP |
Nie |
| Ilość złącz pamięci DDR5 |
4 |
| Uwagi do WiFi / BT |
Support for 11ax 160MHz wireless standard, Actual data rate may vary depending on environment and equipment |
