| Producent |
ASUS |
| Maksymalna wielkość pamięci |
64 GB |
| Chipset płyty głównej |
Intel® Z790 |
| Wymiary [S x W] (mm) |
305 x 244 |
| Opakowanie |
BOX |
| Gniazdo procesora |
Socket 1700 |
| Standard pamięci |
DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC) |
| Format płyty |
ATX |
| Wbudowana karta graficzna |
Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora) |
| Obsługiwane typy procesorów |
Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Pentium™ (Socket 1700), Intel Celeron™ (Socket 1700) |
| Uwagi do procesora |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max, Technology 3.0, Refer to www.asus.com for CPU support list, Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types |
| BIOS |
256 Mb |
| Tryb pracy pamięci RAM |
Dual Channel |
| Gniazda karty graficznej |
HDMI, 2x Thunderbolt™ 4 (USB Type-C®), 2x DisplayPort IN |
| Uwagi do karty graficznej |
2x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and , Thunderbolt™ video outputs, Graphics specifications may vary between CPU types, Please refer to www.intel.com for any updates, Support 4K@60Hz as specified in HDMI 2.1, Support 8K@60Hz as specified in DisplayPort 1.4, Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. For display connection , and video output configuration regarding DP IN and Intel® Thunderbolt™ 4, ports, please refer to the user manual for more details. VGA resolution , support depends on processors' or graphic cards' resolution |
| Zintegrowana karta dźwiękowa |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
| Gniazda karty dźwiękowej |
5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu |
| Złącza PCI Express x16 |
3 |
| Uwagi do złącz PCI |
Intel® 13th & 12th Gen Processors:, - 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes), Intel® Z790 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode) , Please check the PCIe bifurcation table on the support site , (https://www.asus.com/support/FAQ/1037507/), To ensure compatibility of the device installed, please refer to, https://www.asus.com/support/ for the list of supported peripherals |
| Uwagi do karty sieciowej |
ASUS LANGuard |
| Port Bluetooth |
Bluetooth V5.3 |
| Port równoległy (LPT) |
Brak |
| Inne porty i gniazda |
Przycisk BIOS FlashBack na panelu tylnym, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 5x 4-pin Chassis Fan header(s), 3x Addressable Gen 2 header, AURA RGB header, Clear CMOS header, CPU Over Voltage jumper, SPI TPM header (14-1pin), 20-3 pin System Panel header with Chassis intrude function, Thermal Sensor header |
| Gniazdo zasilania |
ATX (24-pin) + ATX12V (8-pin) + ATX12V (6-pin) + ATX12V (4-pin) |
| Uwagi do pamięci RAM |
non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP), OptiMem II, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and, memory frequency support depends on the CPU types |
| Uwagi do karty dźwiękowej |
- Impedance sense for front and rear headphone outputs, - Internal audio Amplifier to enhance the highest quality sound for , headphone and speakers, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - High quality 120 dB SNR stereo playback output and 113 dB SNR recording, input (Line-in), - Supports up to 32-Bit/192 kHz playback, Audio Features:, - Premium audio capacitors, - Dedicated audio PCB layers, - Audio Cover, - Unique de-pop circuit, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for , 7.1 Surround Sound audio, A chassis with an HD audio module in the front panel is required to support, 7.1 Surround Sound audio output |
| Okres rękojmi w miesiącach |
36 |
| Zintegrowany kontroler SATA |
Chipset+CPU: 8x SATA III 6Gb/s - RAID 0,1,5,10 + 4x M.2 + RAID 0,1,5 |
| Uwagi do kontrolera SATA |
Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports, Intel® 13th & 12th Gen Processors:, - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), Intel® Z790 Chipset:, - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe4.0x4 & SATA modes), - 8 x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports NVMe RAID 0/1/5,SATA RAID 0/1/5/10, M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended , once either a SATA or NVMe device is detected at M.2_4 |
| Port Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax |
| Port LAN |
1x 10 Gigabit LAN Marvell® AQtion, 1x 2,5 Gigabit LAN Intel® |
| Port PS/2 |
Brak |
| Port szeregowy (COM) |
1x wewnętrzne gniazdo portu COM |
| Maksymalna ilość portów USB 2.0 |
4 |
| Maksymalna ilość portów USB 3.x |
11 |
| Porty USB na panelu tylnym |
6x USB 3.1 + 2x Thunderbolt 4/USB Type-C |
| Gniazda USB na płycie głównej |
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port) |
| Cechy |

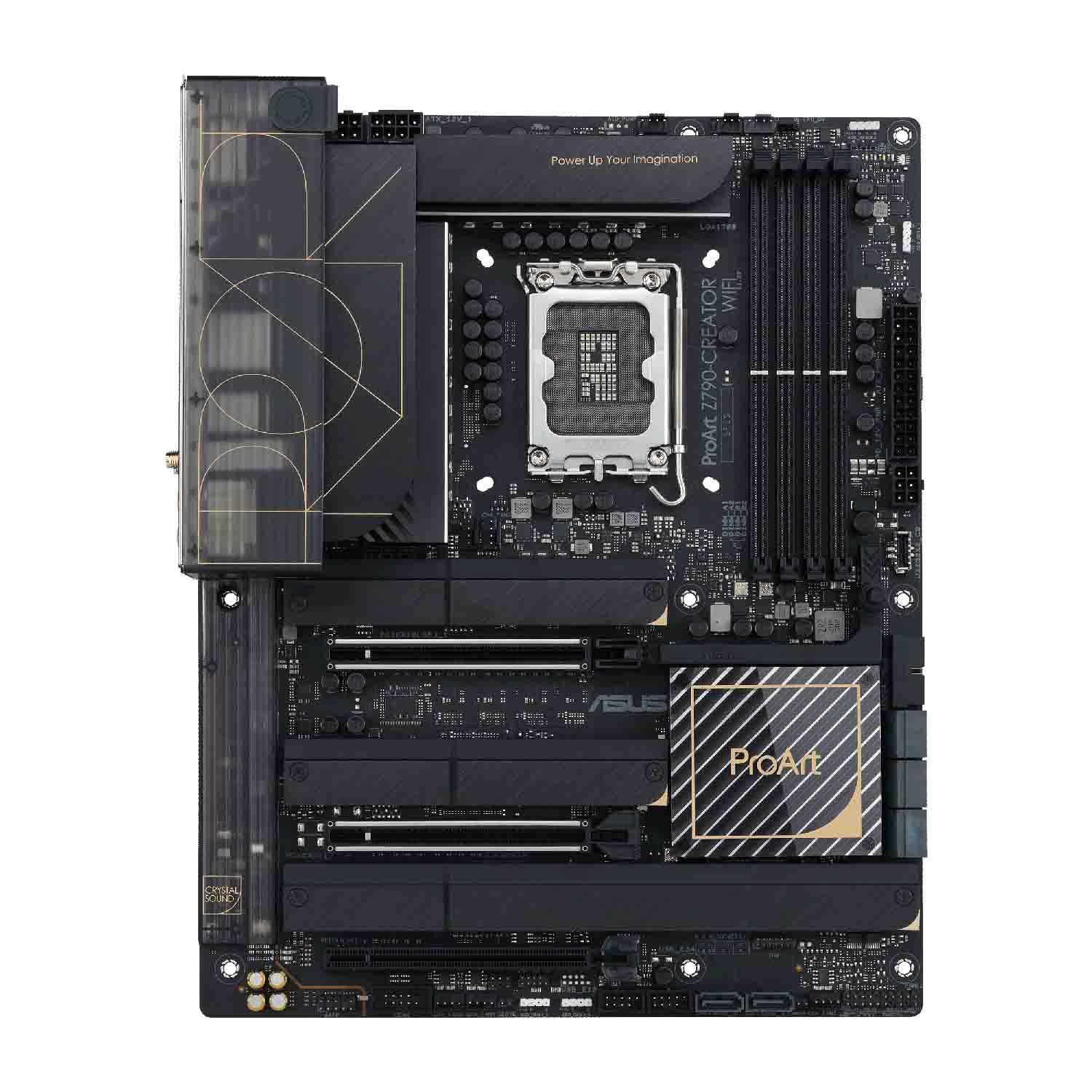

ProArt Z790-CREATOR WIFI;ATX |
| Baza SCIP |
Nie |
| Ilość złącz pamięci DDR5 |
4 |
| Uwagi do WiFi / BT |
Wi-Fi 6E: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band, WiFi 6E 6GHz regulatory may vary between countries, The Bluetooth version may vary, please refer to the Wi-Fi module , manufacturer's website for the latest specifications |
