| Producent |
GIGABYTE |
| Maksymalna wielkość pamięci |
256 GB |
| Chipset płyty głównej |
AMD X870 |
| Wymiary [S x W] (mm) |
305 x 244 |
| Opakowanie |
BOX |
| Gniazdo procesora |
Socket AM5 |
| Standard pamięci |
DDR5-8000 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6666 (OC), DDR5-6600 (OC), DDR5-6400 (OC), DDR5-6200 (OC), DDR5-6000 (OC), DDR5-5600 (OC), DDR5-5200, DDR5-4800, DDR5-4400 |
| Format płyty |
ATX |
| Wbudowana karta graficzna |
Brak lub AMD Radeon™ Graphics (zależy od procesora) |
| Obsługiwane typy procesorów |
AMD Ryzen™ |
| Uwagi do procesora |
Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| BIOS |
256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Tryb pracy pamięci RAM |
Dual Channel |
| Gniazda karty graficznej |
2x USB4 Type-C, HDMI |
| Uwagi do karty graficznej |
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia , USB4® Controller:, - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video , outputs and a maximum resolution of 3840x2160@240 Hz, Support for DisplayPort 1.4 version and HDR, Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR, Support native HDMI 2.1 TMDS compatible ports, Graphics specifications may vary depending on CPU support |
| Zintegrowana karta dźwiękowa |
Realtek® HD Audio CODEC |
| Gniazda karty dźwiękowej |
3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu |
| Złącza PCI Express x16 |
3 |
| Uwagi do złącz PCI |
CPU:, - 1 x PCI Express x16 slot (PCIEX16), - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX16 slot can only support a graphics card or an NVMe SSD, If only one graphics card is to be installed, be sure to install it in , the PCIEX16 slot, Chipset:, - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 , (PCIEX1_1/2) |
| Port Bluetooth |
Bluetooth V5.4 |
| Port równoległy (LPT) |
Brak |
| Inne porty i gniazda |
CPU fan header, CPU fan/water cooling pump header, 4x system fan headers, 3x addressable RGB Gen2 LED strip headers, RGB LED strip header, Gniazdo modułu TPM, Reset button, Reset jumper, Clear CMOS jumper, Power-on button(s), 2x SMA antenna connectors (2T2R), Przycisk Q-Flash Plus |
| Gniazdo zasilania |
ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin) |
| Uwagi do pamięci RAM |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and , Extreme Memory Profile (XMP) memory modules |
| Uwagi do karty dźwiękowej |
You can change the functionality of an audio jack using the audio software, To configure 7.1-channel audio, access the audio software for audio setting |
| Okres rękojmi w miesiącach |
36 |
| Zintegrowany kontroler SATA |
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0,1,5,10 |
| Uwagi do kontrolera SATA |
1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, , M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs, 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3,, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs, The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB, connector will become unavailable when an PCIe 4.0 x4 SSD is installed in , the M2B_SB connector, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 5 is only available on AMD Ryzen™ 9000 Series Processors |
| Port Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax/be |
| Port LAN |
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®) |
| Port PS/2 |
Brak |
| Port szeregowy (COM) |
Brak |
| Maksymalna ilość portów USB 2.0 |
8 |
| Maksymalna ilość portów USB 3.x |
7 |
| Porty USB na panelu tylnym |
4x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 + 2x USB4 Type-C |
| Gniazda USB na płycie głównej |
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port) |
| Cechy |

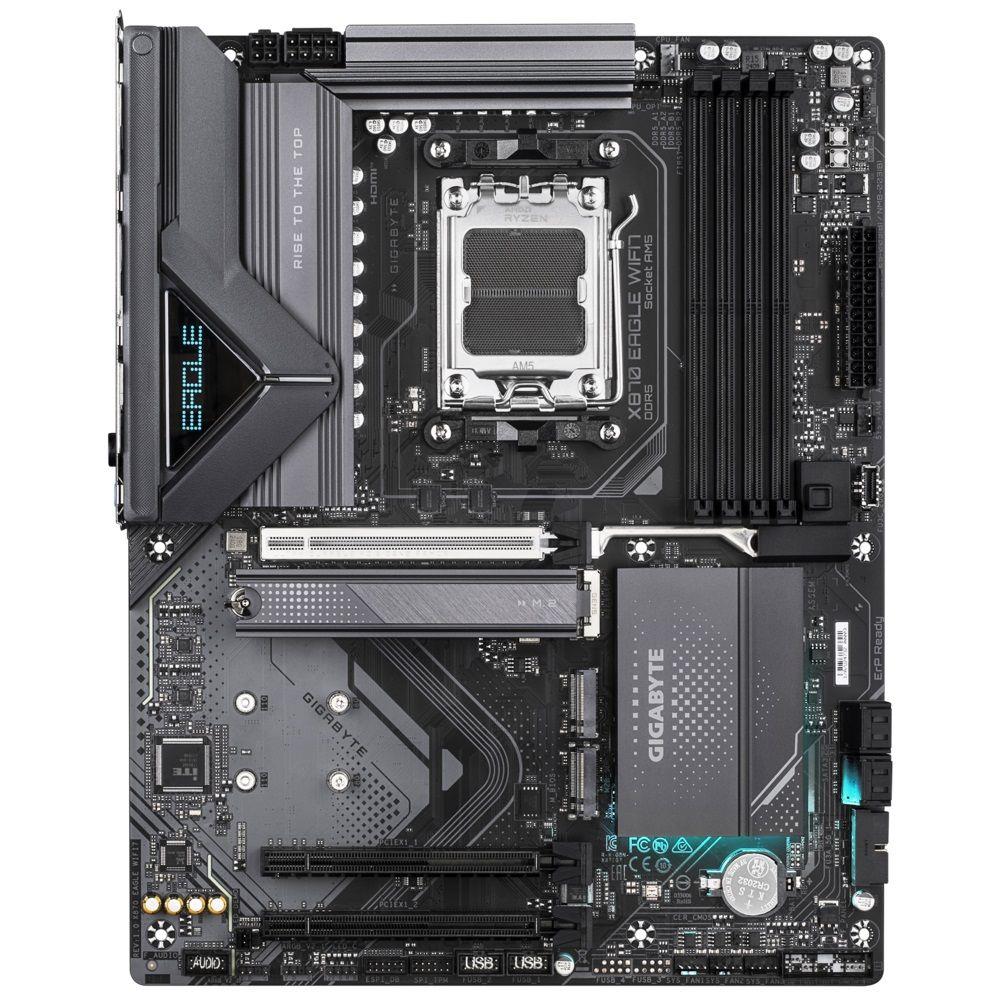

X870 EAGLE WIFI7;ATX |
| Maksymalna ilość portów USB 4.0 |
2 |
| Baza SCIP |
Nie |
| Ilość złącz pamięci DDR5 |
4 |
| Uwagi do WiFi / BT |
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency band, Support for 11be 160MHz wireless standard, Actual data rate may vary depending on environment and equipment, Wi-Fi 7 features require Windows 11 SV3 to function properly (There is no , support driver for Windows 10), Wi-Fi 7 channels on 6GHz band availability depends on individual country's , regulations, PCB rev. 1.0: MediaTek Wi-Fi 7 MT7925, PCB rev. 1.1: Realtek® Wi-Fi 7 RTL8922AE |
