| Producent |
GIGABYTE |
| Maksymalna wielkość pamięci |
256 GB |
| Chipset płyty głównej |
AMD B850 |
| Wymiary [S x W] (mm) |
244 x 244 |
| Opakowanie |
BOX |
| Gniazdo procesora |
Socket AM5 |
| Standard pamięci |
DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7950 (OC), DDR5-7900 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7400 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6600 (OC), DDR5-6400 (OC), DDR5-6200 (OC), DDR5-5800 (OC), DDR5-5600 (OC), DDR5-4800, DDR5-4400 |
| Format płyty |
M-ATX |
| Wbudowana karta graficzna |
Brak lub AMD Radeon™ Graphics (zależy od procesora) |
| Obsługiwane typy procesorów |
AMD Ryzen™ |
| Uwagi do procesora |
Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| BIOS |
256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Tryb pracy pamięci RAM |
Dual Channel |
| Gniazda karty graficznej |
HDMI, 2x DisplayPort |
| Uwagi do karty graficznej |
Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, and HDR., Support for native HDMI 2.1 TMDS compatible ports., Support for DisplayPort 1.4 version and HDR, - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version., Graphics specifications may vary depending on CPU support, Support for up to triple-display at the same time |
| Zintegrowana karta dźwiękowa |
Realtek ® 7.1 Surround Sound High Definition Audio CODEC |
| Gniazda karty dźwiękowej |
3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu |
| Złącza PCI Express x16 |
2 |
| Uwagi do złącz PCI |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX16 slot can only support a graphics card or an NVMe SSD, If only one graphics card is to be installed, be sure to install it in , the PCIEX16 slot, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Port Bluetooth |
Bluetooth V5.3 |
| Port równoległy (LPT) |
Brak |
| Inne porty i gniazda |
CPU fan header, CPU fan/water cooling pump header, System fan header, System fan/water cooling pump header, RGB LED strip header, Gniazdo modułu TPM, Reset button, Reset jumper, Clear CMOS jumper, Q-Flash Plus button, 2x SMA antenna connectors (2T2R) |
| Gniazdo zasilania |
ATX (24-pin) + ATX12V (8-pin) |
| Uwagi do pamięci RAM |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and , Extreme Memory Profile (XMP) memory modules |
| Uwagi do karty dźwiękowej |
You can change the functionality of an audio jack using the audio software, To configure 7.1-channel audio, access the audio software for audio setting |
| Okres rękojmi w miesiącach |
36 |
| Zintegrowany kontroler SATA |
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2 - RAID 0,1,5,10 |
| Uwagi do kontrolera SATA |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, , M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, , M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 5 is only available on AMD Ryzen™ 9000 Series Processors |
| Port Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax |
| Port LAN |
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®) |
| Port PS/2 |
Port combo klawiatury/myszy PS/2 |
| Port szeregowy (COM) |
Brak |
| Maksymalna ilość portów USB 2.0 |
8 |
| Maksymalna ilość portów USB 3.x |
7 |
| Porty USB na panelu tylnym |
4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C |
| Gniazda USB na płycie głównej |
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port) |
| Cechy |

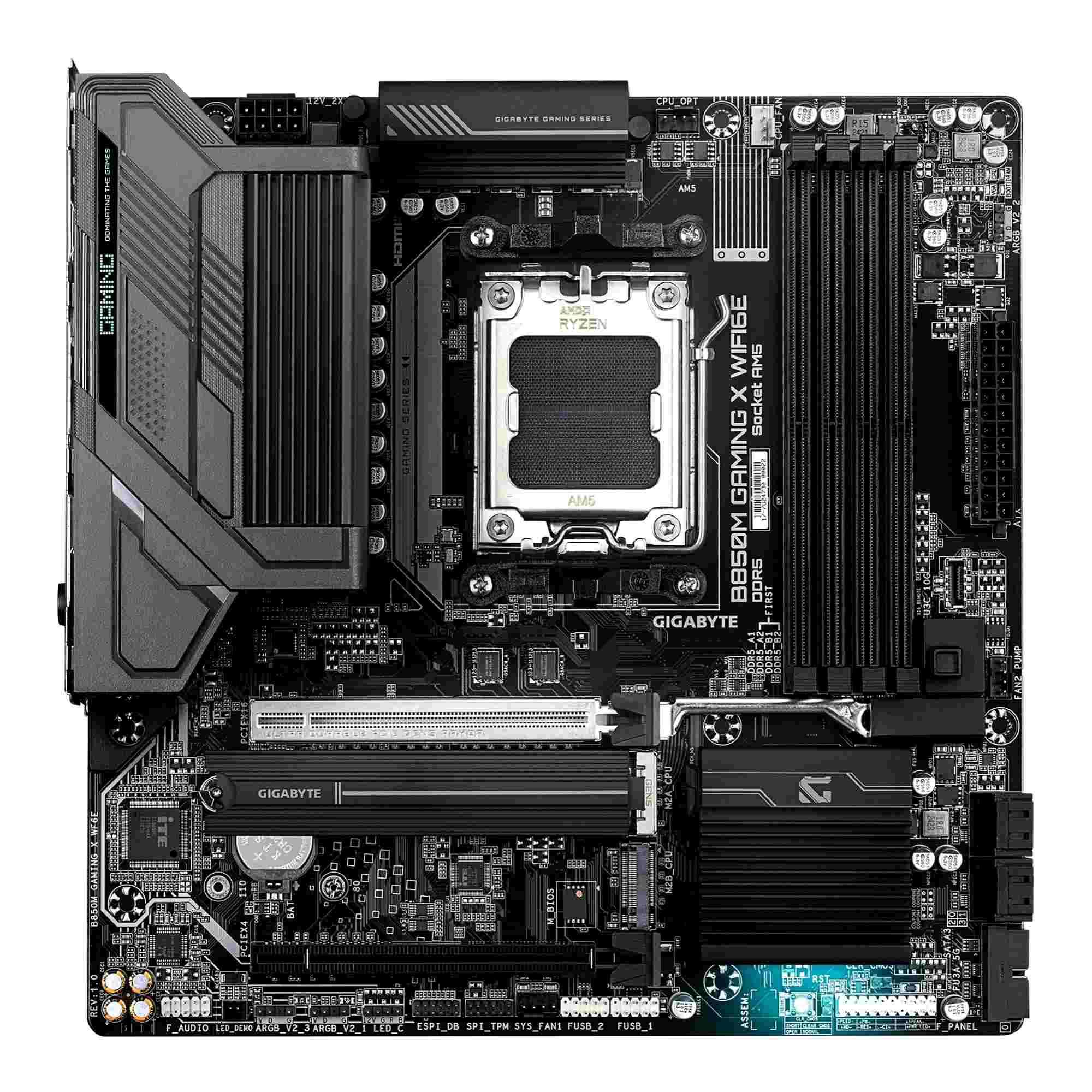

B850M GAMING X WF6E |
| Baza SCIP |
Nie |
| Ilość złącz pamięci DDR5 |
4 |
| Uwagi do WiFi / BT |
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency band, Support for 11be 160MHz wireless standard, Actual data rate may vary depending on environment and equipment |
