| Producent |
GIGABYTE |
| Maksymalna wielkość pamięci |
256 GB |
| Chipset płyty głównej |
AMD B650 |
| Wymiary [S x W] (mm) |
305 x 244 |
| Opakowanie |
BOX |
| Gniazdo procesora |
Socket AM5 |
| Standard pamięci |
DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6666 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC) |
| Format płyty |
ATX |
| Wbudowana karta graficzna |
Brak lub AMD Radeon™ Graphics (zależy od procesora) |
| Obsługiwane typy procesorów |
AMD Ryzen™ |
| Uwagi do procesora |
Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| BIOS |
256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Tryb pracy pamięci RAM |
Dual Channel |
| Gniazda karty graficznej |
2x HDMI, USB Type-C/DisplayPort |
| Uwagi do karty graficznej |
Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, Support for native HDMI 2.1 TMDS compatible ports, - 1 x HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, Support for HDMI 1.4 version, - 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video , outputs and a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version and HDR, Graphics specifications may vary depending on CPU support |
| Zintegrowana karta dźwiękowa |
Realtek® HD Audio CODEC |
| Gniazda karty dźwiękowej |
3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu |
| Złącza PCI Express x16 |
3 |
| Uwagi do złącz PCI |
CPU:, - 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU, - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX16 slot can only support a graphics card or an NVMe SSD, If only one graphics card is to be installed, be sure to install it in , the PCIEX16 slot, Chipset:, - 2 x PCI Express x16 slot, , supporting PCIe 3.0 and running , at x1 (PCIEX1_1/2) |
| Port Bluetooth |
Bluetooth V5.3 |
| Port równoległy (LPT) |
Brak |
| Inne porty i gniazda |
CPU fan header, CPU fan/water cooling pump header, 3x system fan headers, System fan/water cooling pump header, 3x addressable RGB Gen2 LED strip headers, RGB LED strip header, Front panel header, Front Panel Audio header (AAFP), Trusted Platform Module header, Reset button, Reset jumper, Clear CMOS jumper |
| Gniazdo zasilania |
ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin) |
| Uwagi do pamięci RAM |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme, Memory Profile (XMP) memory modules |
| Uwagi do karty dźwiękowej |
You can change the functionality of an audio jack using the audio software, To configure 7.1-channel audio, access the audio software for audio setting |
| Okres rękojmi w miesiącach |
36 |
| Zintegrowany kontroler SATA |
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 10 |
| Uwagi do kontrolera SATA |
1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, , M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support , PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, , supporting Socket 3, M key, type 22110/2280 SSDs:, - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Port Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax |
| Port LAN |
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®) |
| Port PS/2 |
Brak |
| Port szeregowy (COM) |
Brak |
| Maksymalna ilość portów USB 2.0 |
8 |
| Maksymalna ilość portów USB 3.x |
11 |
| Porty USB na panelu tylnym |
4x USB 2.0 + 5x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C |
| Gniazda USB na płycie głównej |
2x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port) |
| Cechy |

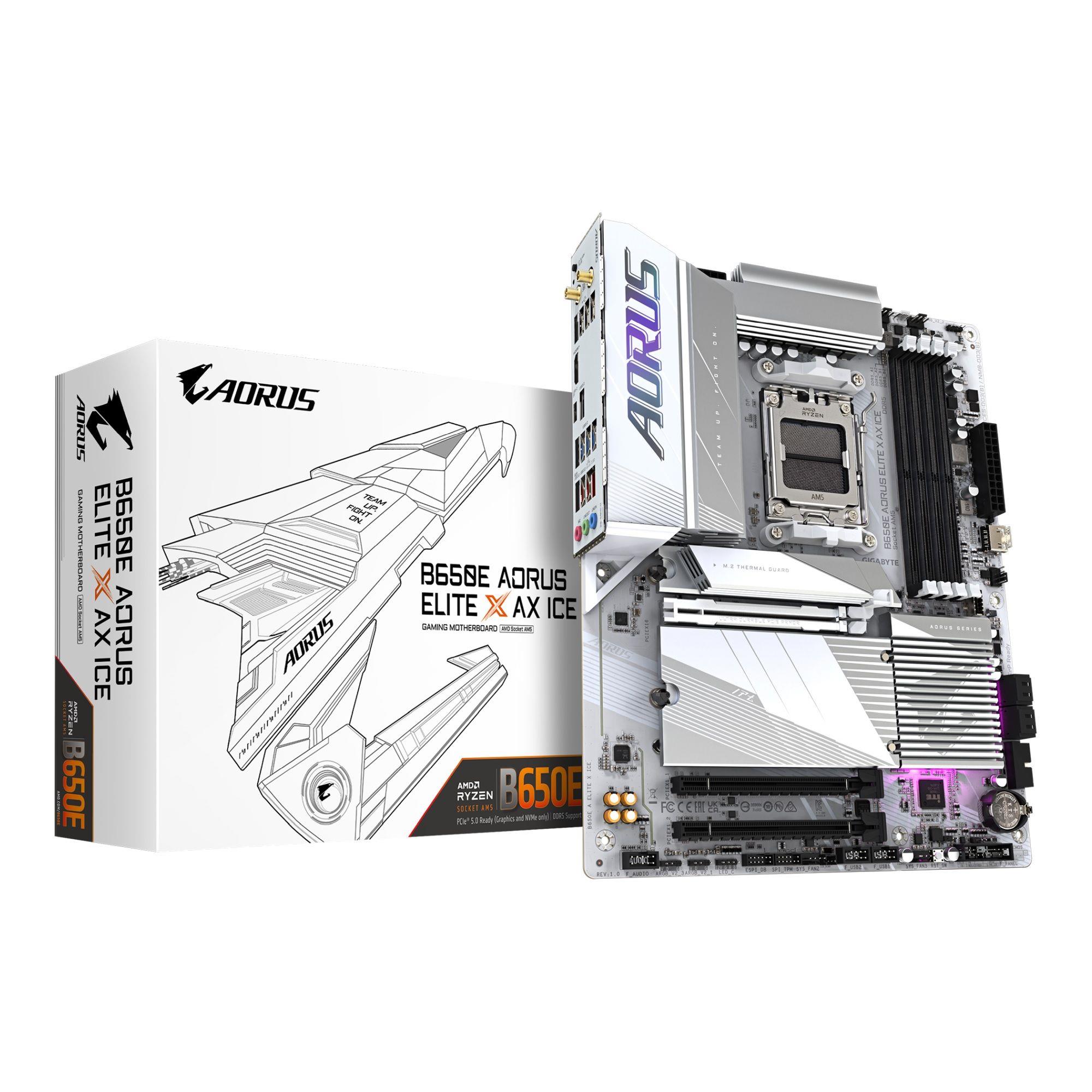

B650E AORUS ELITE X AX ICE;ATX |
| Baza SCIP |
Nie |
| Ilość złącz pamięci DDR5 |
4 |
| Uwagi do WiFi / BT |
Realtek® Wi-Fi 6E RTL8852CE(PCB rev. 1.0):, - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, - Support for 11ax 160MHz wireless standard, Intel® Wi-Fi 6E AX210 (PCB rev. 1.1):, - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, - Support for 11ax 160MHz wireless |
