| Producent |
GIGABYTE |
| Wyposażenie dodatkowe |
Norton® Internet Security (OEM version), LAN bandwidth management software |
| Maksymalna wielkość pamięci |
192 GB |
| Chipset płyty głównej |
AMD B650 |
| Wymiary [S x W] (mm) |
305 x 224 |
| Opakowanie |
BOX |
| Gniazdo procesora |
Socket AM5 |
| Standard pamięci |
DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC) |
| Format płyty |
ATX |
| Wbudowana karta graficzna |
Brak lub AMD Radeon™ Graphics (zależy od procesora) |
| Obsługiwane typy procesorów |
AMD Ryzen™ (AM5) |
| Uwagi do procesora |
Support for: AMD Ryzen™ 7000 Series Processors & 8000 Series Processors |
| BIOS |
256 Mbit Flash AMI UEFI BIOS,PnP 1.0a,DMI 2.7,WfM 2.0,SM BIOS 2.7,ACPI 5.0 |
| Tryb pracy pamięci RAM |
Dual Channel |
| Gniazda karty graficznej |
HDMI, DisplayPort |
| Uwagi do karty graficznej |
1x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, Support native HDMI 2.1 TMDS compatible ports, Graphics specifications may vary depending on CPU support |
| Zintegrowana karta dźwiękowa |
Realtek® 8-Channel High Definition Audio CODEC |
| Gniazda karty dźwiękowej |
Wewnętrzne gniazdo audio przedniego panelu, 3x Audio Jack |
| Złącza PCI Express x16 |
4 |
| Uwagi do złącz PCI |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only, one graphics card is to be installed, be sure to install it in the PCIEX16, slot, Chipset:, 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1, * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ , 8000 Series-Phoenix 2 processor is used. |
| Uwagi do karty sieciowej |
1 Gbps/100 Mbps/10 Mbps |
| Port Bluetooth |
Bluetooth V5.0 |
| Port równoległy (LPT) |
Brak |
| Inne porty i gniazda |
CPU fan header, CPU fan/water cooling pump header, 2x system fan headers, System fan/water cooling pump header, 3x addressable RGB Gen2 LED strip headers, RGB LED strip header, Front panel header, Front Panel Audio header (AAFP), Gniazdo modułu TPM, Q-Flash Plus button, Clear CMOS jumper, 2x SMA antenna connectors (2T2R) |
| Gniazdo zasilania |
ATX (24-pin) + ATX12V (8-pin) |
| Uwagi do pamięci RAM |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and , Extreme Memory Profile (XMP) memory modules, Support up to 192 GB (48 GB single DIMM capacity) |
| Uwagi do karty dźwiękowej |
You can change the functionality of an audio jack using the audio software, To configure 7.1channel audio, access the audio software for audio settings |
| Okres rękojmi w miesiącach |
36 |
| Zintegrowany kontroler SATA |
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 10 |
| Uwagi do kontrolera SATA |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, , M key, type 25110/2580 SSDs:, - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, , M key, type 22110/2280 SSDs:, - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, Chipset:, 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD , support) (M2C_SB), 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Port Wi-Fi |
IEEE 802.11ax |
| Port LAN |
1x 1 Gigabit LAN Realtek® |
| Port PS/2 |
Port combo klawiatury/myszy PS/2 |
| Port szeregowy (COM) |
1x wewnętrzne gniazdo portu COM |
| Maksymalna ilość portów USB 2.0 |
12 |
| Maksymalna ilość portów USB 3.x |
6 |
| Porty USB na panelu tylnym |
6x USB 2.0 + 2x USB 3.1 + 1x USB 3.0 Type-C |
| Gniazda USB na płycie głównej |
3x USB 2.0 (6 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port) |
| Cechy |

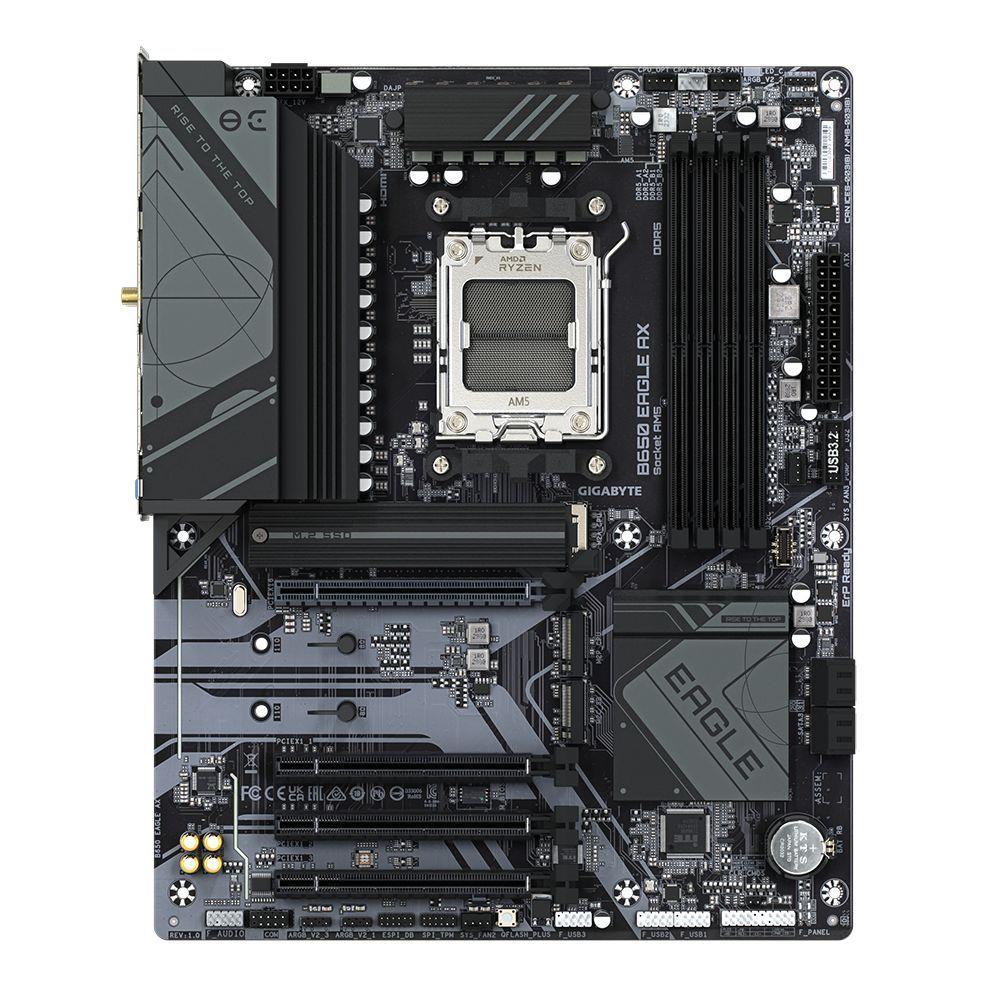

B650 EAGLE AX;ATX |
| Baza SCIP |
Nie |
| Ilość złącz pamięci DDR5 |
4 |
